How to Digitize an Old Blueprint With AI (Without Losing the Dimensions)
Matúš Koleják
Most facilities teams and engineering firms have the same drawer, a filing cabinet, or a basement box of rolled paper: original blueprints for a building or a machine that has since been renovated, patched, and half-forgotten by anyone who still works there. The drawings are often the only record of what is actually behind a wall or under a floor, and they are usually one water leak away from being gone for good.
Digitizing them used to mean a scanner and a lot of manual redrawing. AI has made the first part of that fast. The second part, deciding how much to trust what comes out, still needs a human in the loop.
What digitizing actually means
There are two very different levels of "digitized," and it is worth being clear about which one you need.
A scanned image is just a photo or PDF of the paper drawing. It is searchable by filename, but every line is still a picture, not data. You cannot select a wall, measure a dimension, or edit it in CAD.
A vectorized drawing is the real upgrade. AI traces the drawn lines into actual vector geometry, walls become editable lines, dimensions become readable, selectable numbers, and the file opens as a working drawing in AutoCAD, Revit or a similar tool instead of a flat picture. This is what most people actually mean when they say they want a blueprint digitized, and it is the harder, more valuable step.
How the AI part works
The process leans on two related techniques. Image tracing (sometimes called vectorization) studies the scanned lines and rebuilds them as clean vector paths, snapping rough or slightly wavy hand-drafted lines into straight, consistent geometry. Separately, optical character recognition reads the printed dimensions, labels and title block text, so the numbers on the sheet become searchable, editable text instead of pixels.
Run on a clear, high-contrast original, this combination gets you most of the way to a usable CAD file automatically, walls traced, rooms outlined, dimension text extracted, in a fraction of the time a manual redraw would take.
Where it holds up, and where old drawings cause trouble
It holds up well on:
- Clean, high-contrast originals with dark, consistent linework.
- Standard drafting conventions, straight walls, right angles, printed (not handwritten) dimensions.
- Drawings scanned flat and square, without folds, creases or warping.
It struggles on:
- Faded or low-contrast ink, common on blueprints and diazo prints from before the 1980s, where the lines the AI needs to trace have literally lost density over time.
- Handwritten annotations and revision marks, which OCR reads far less reliably than printed text, and which are often the most important notes on the sheet.
- Non-standard or missing scale, an old drawing labelled "1 inch = 1 foot" in a convention nobody uses anymore, or a scale bar that has shrunk slightly from decades of paper shrinkage.
- As-built drift. This is the one that catches people out. The drawing shows the building as it was designed, not necessarily as it was actually built, or as it has been modified since. A wall moved during a renovation twenty years ago will not show up no matter how well the AI traces the original sheet.
None of this makes the tool unreliable. It makes the output a very good first draft that still needs a second look before anyone builds, cuts or renovates against it.
The verification step that actually matters
Before you treat a digitized drawing as ground truth, take a handful of real field measurements, a wall length, a door opening, a ceiling height, and check them against the digitized file. If those line up, the rest of the drawing is probably trustworthy. If they do not, you have just caught the as-built drift before it turned into an expensive mistake on site, not after.
This is the same discipline any experienced facilities manager already applies to old paper drawings. AI just moves the risk earlier and cheaper: you find out a drawing has drifted from reality in an afternoon at your desk, not halfway through a renovation.
This is the exact problem TechDraw AI is built around. Instead of trusting scale guessed from a scan, you set the real measurements yourself from a couple of known lengths, so every dimension on the digitized sheet is anchored to your actual object or space rather than inherited unquestioned from a decades-old print. If you are starting from a fresh hand sketch rather than an old scanned drawing, our guide to sketch to CAD covers that specific case.
Frequently asked questions
Can AI turn an old blueprint into a file I can edit in CAD?
Yes, on a clear original. The AI traces the drawn lines into vector geometry and reads the printed dimensions, producing a file that opens as editable geometry in AutoCAD or a similar tool rather than a flat scanned image.
Why would a digitized blueprint be wrong if the tracing worked perfectly?
Because tracing only recreates what is on the paper. If the building was modified after the drawing was made and the change was never documented, the digitized file will be a perfect copy of an outdated drawing. Always verify a few real measurements on site.
Does AI handle handwritten notes and revision marks on old drawings?
Not reliably. Printed dimensions and title block text read well with OCR. Handwritten annotations, which are often the most important updates on an old sheet, need a human to read and re-enter them.
What file format should a digitized blueprint end up in?
DXF or DWG for most CAD and facilities software, since both preserve editable vector geometry. A flat PDF or image export is fine for archiving and searching, but it is not the same as a usable working drawing.
Sources and further reading
- Image tracing - background on how raster-to-vector conversion works.
- Computer-aided design - overview of CAD file formats and workflows.

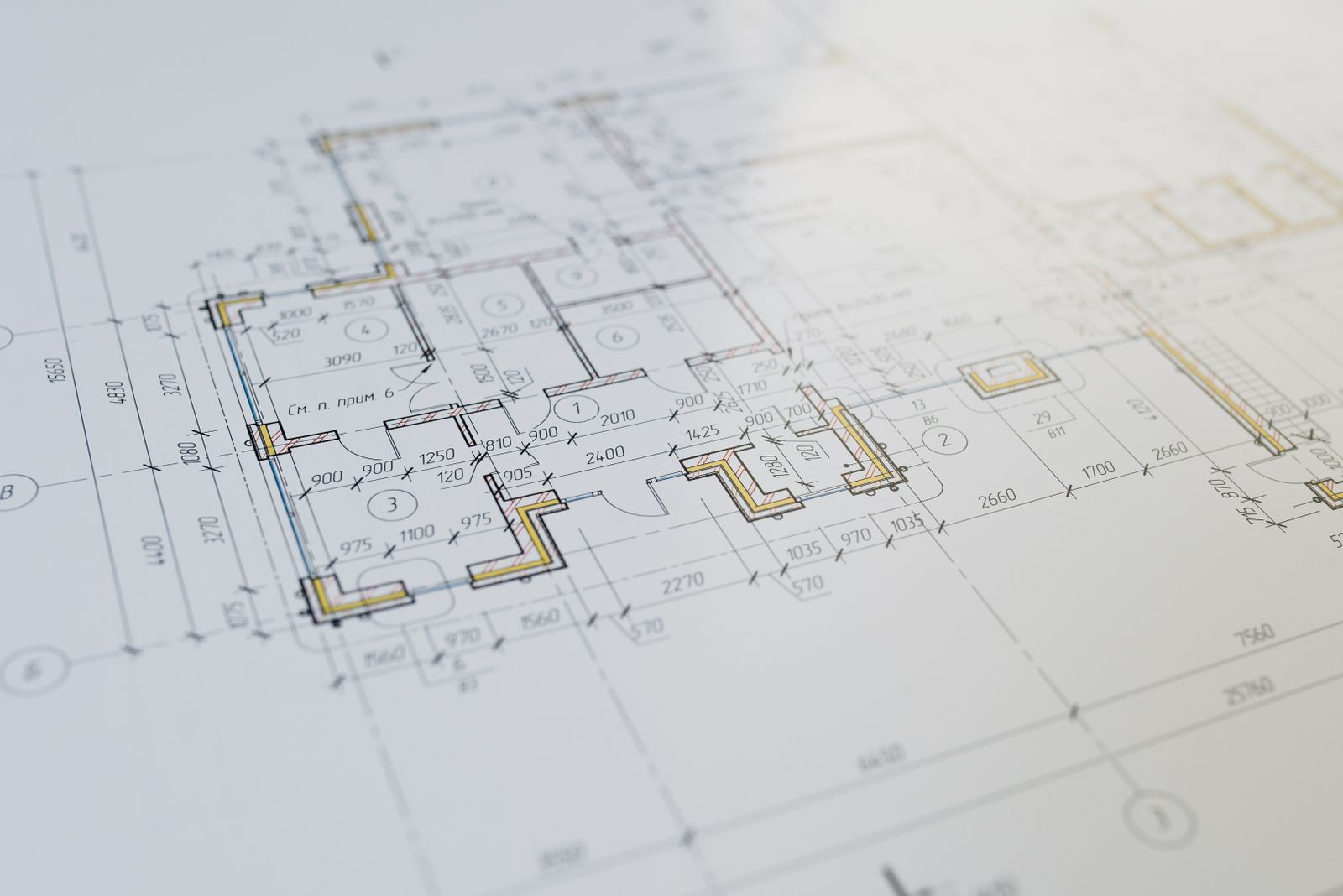

Image credit: photo via Pexels (Ivan S), free to use.
