Turn any object into a technical drawing with AI

AI Technical Drawing · CAD & DXF Export · Engineering

Visit TechDraw AI→

Real drawings generated from a single photo.

TechDraw AI is one of our own products. You photograph a part, or drop in a 3D render, and it draws the thing the way a draughtsman would: front, top and side views, the dimensions filled in, a title block on the sheet. The detail most tools get wrong is scale, so instead of guessing sizes from the pixels in a photo, it asks you for a couple of real lengths and works every dimension out from those. What you get back is a drawing a machine shop will actually quote from, and you can export it to DXF, DWG, SVG or PDF for whatever CAD or CNC tool you already run.

How it works

From a photo to a drawing the shop will accept

Three steps, no CAD licence, and nothing to install. You upload the object, check the measurements are right, and the AI lays out the views, adds the dimensions and applies the drawing standard. The sheet that comes back opens straight in AutoCAD, SolidWorks or Fusion, or goes to a laser cutter as a DXF.

Start with a photo

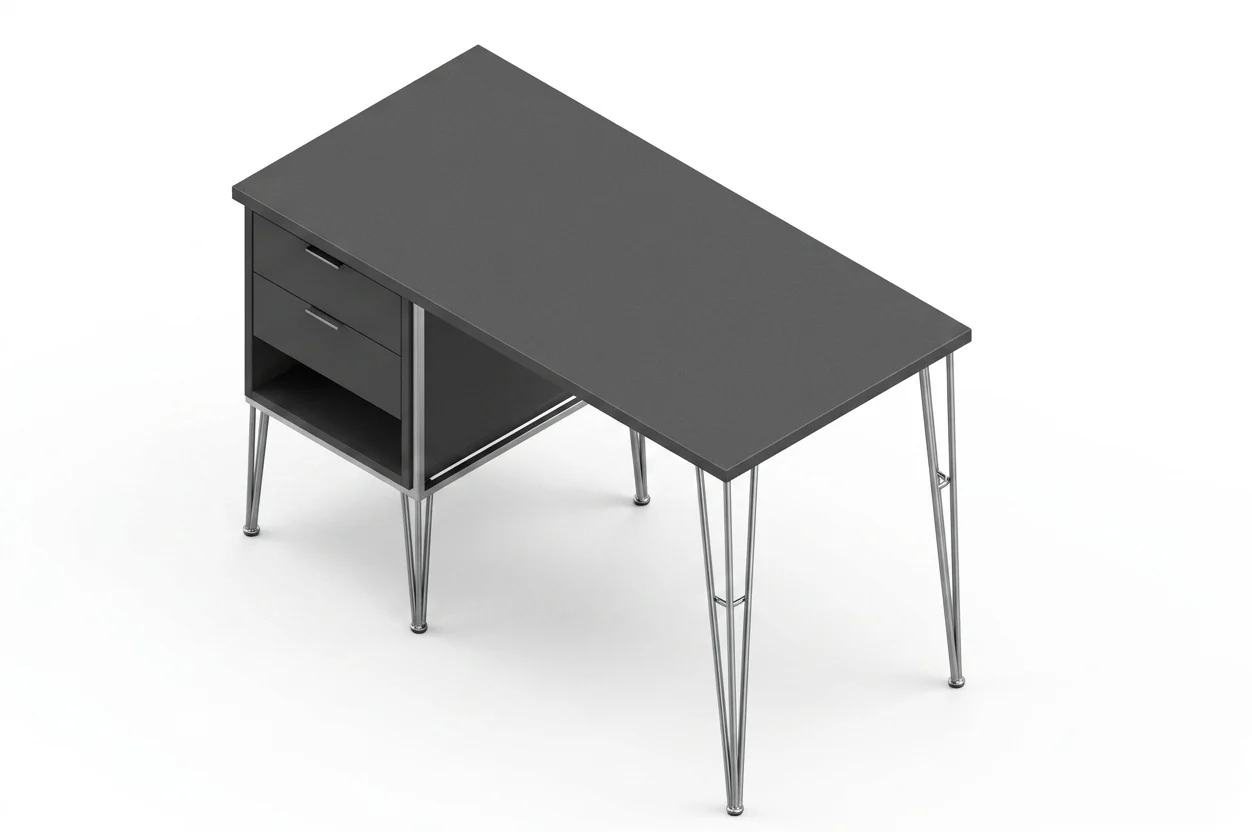

A phone photo is enough. A machined part, a bracket, a piece of furniture, even a rough 3D render, anything you can point a camera at becomes the starting point for the drawing.

Set the real measurements

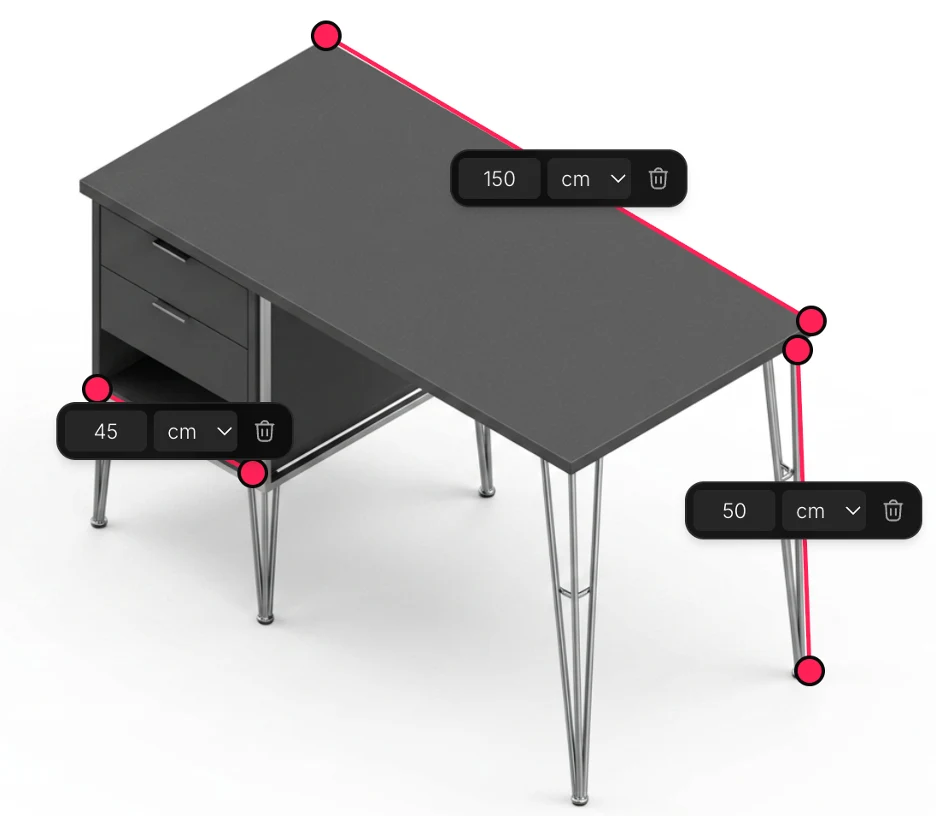

This is the step that makes the numbers trustworthy. You pick the drawing type and units and type in a few real lengths, so every dimension is measured from your actual part instead of guessed from the photo.

Get proper orthographic views

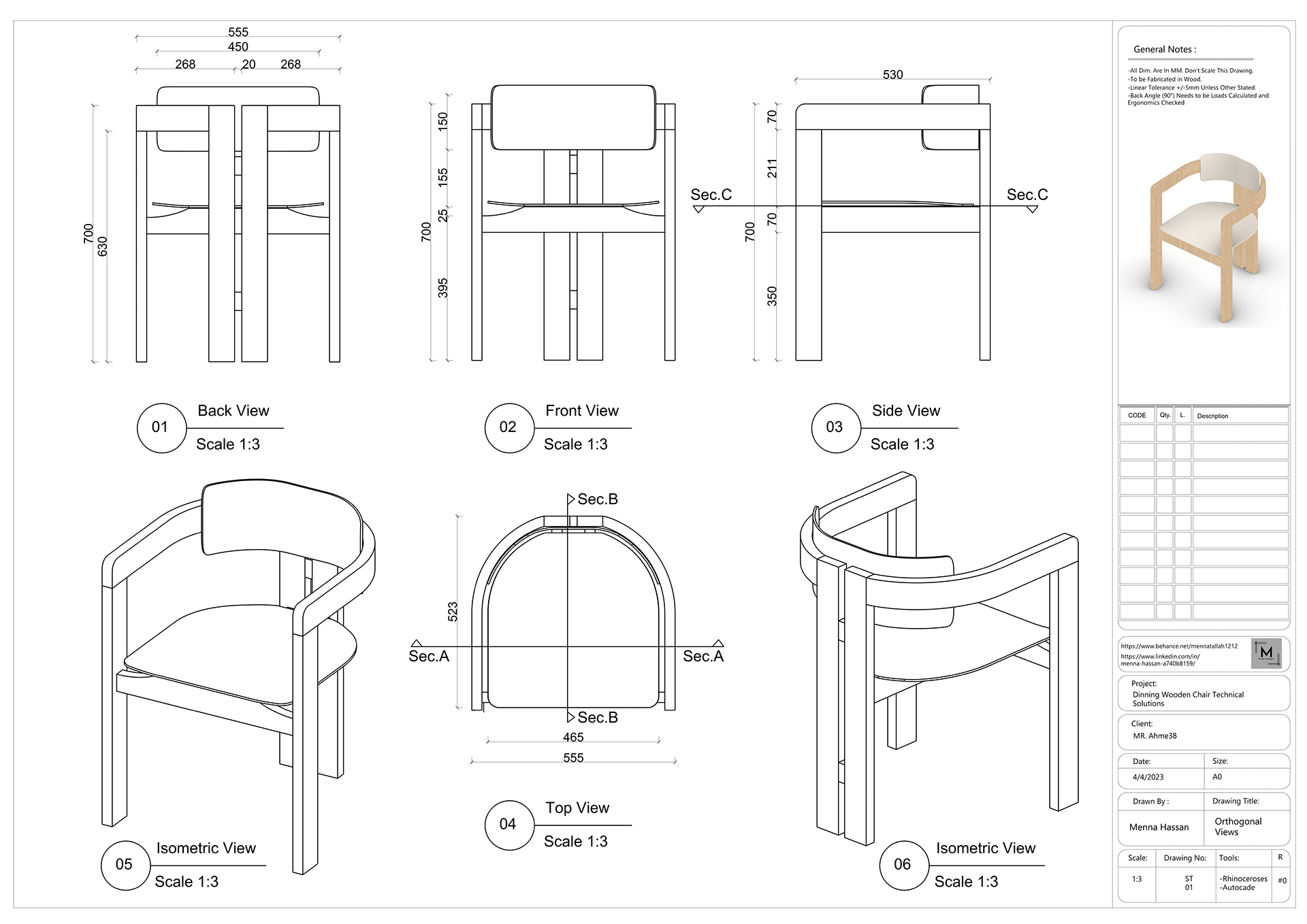

Front, top, side and isometric views, laid out to scale with the dimensions and title block already in place. The kind of drawing you would normally wait on a draughtsman to set up.

Sections, details and a parts list

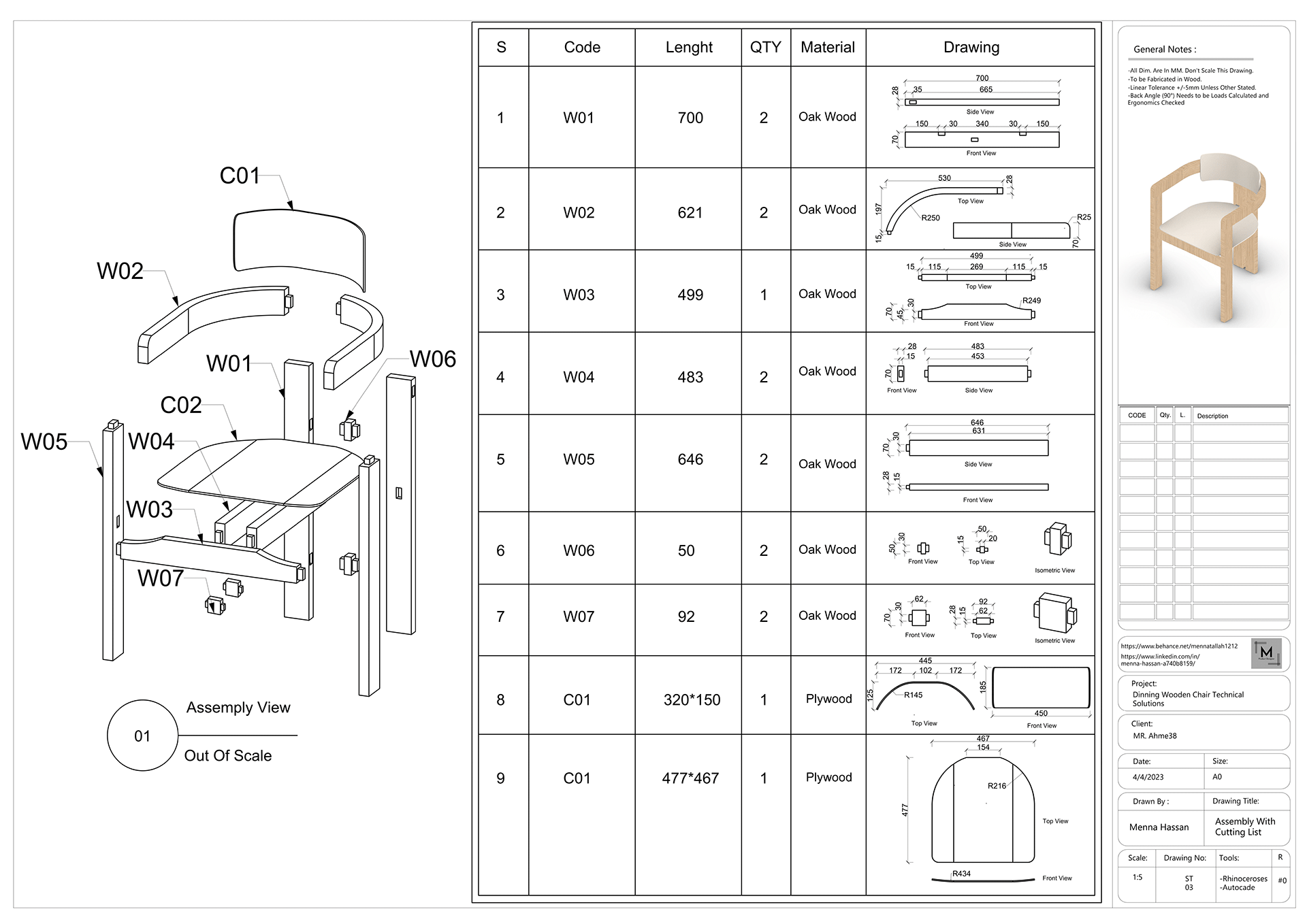

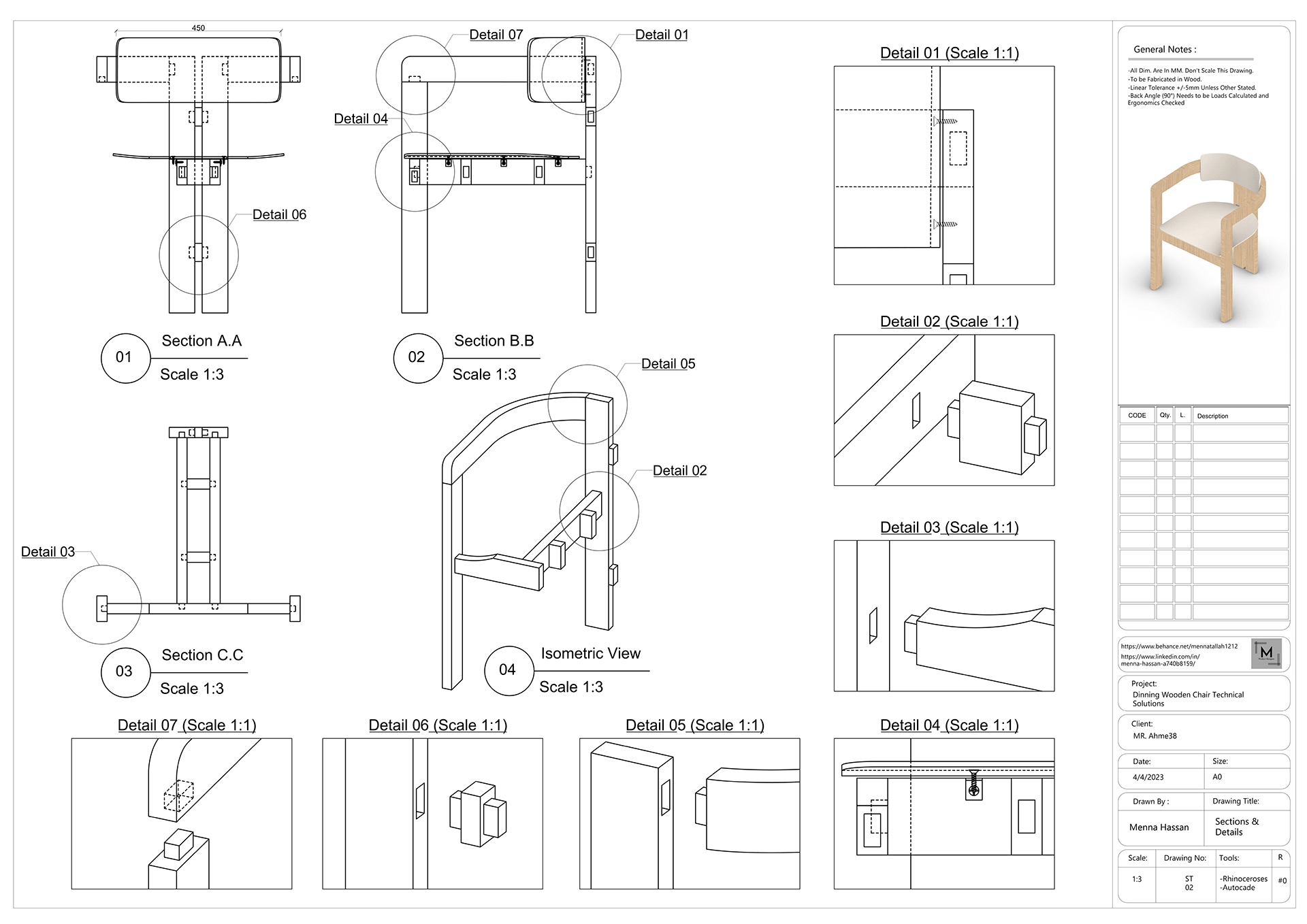

Need more than the outline? It cuts section views, zooms in on the tricky joints, explodes an assembly and writes out the cutting list or bill of materials, all on the same sheet.
